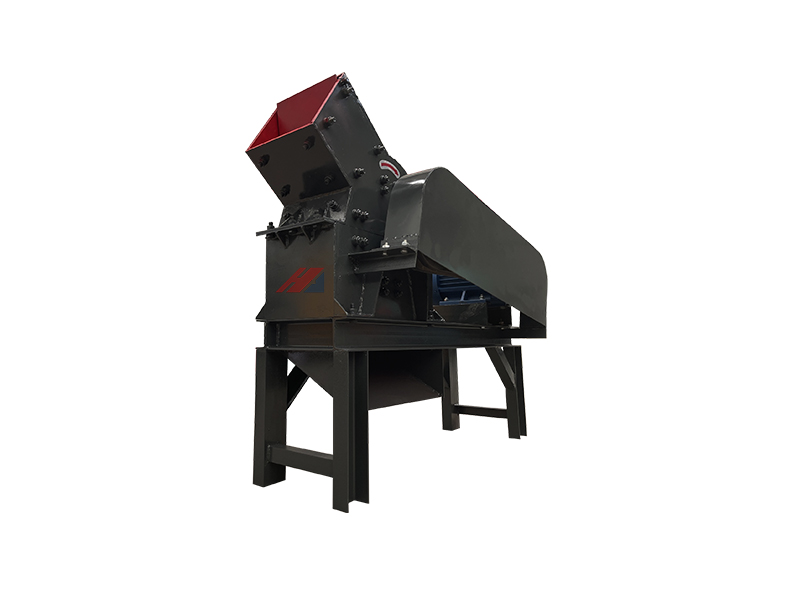

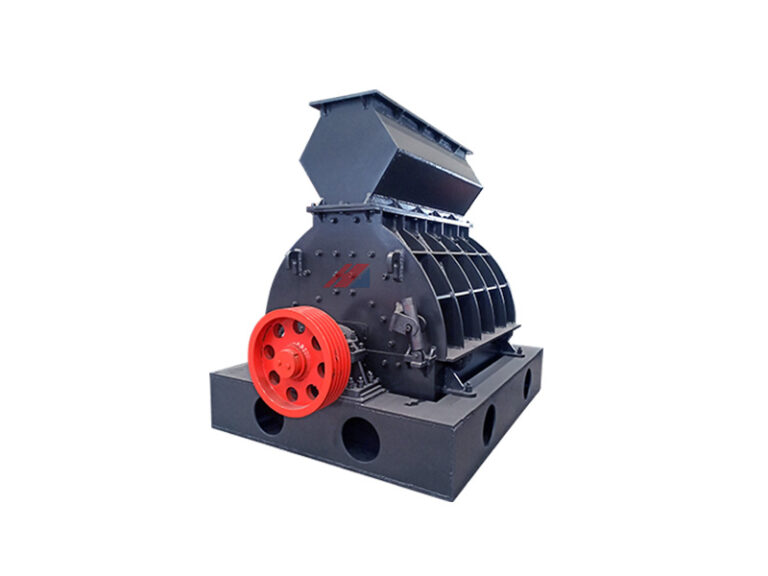

The ZSK sand making machine is suitable for fine crushing of medium-hard, relatively soft materials such as limestone, sandstone, and construction waste. The gap between the grate bars and hammers can be flexibly adjusted to produce cubic-shaped particles. The particle grading and fineness modulus are well-suited to the requirements of commercial concrete mixing stations. It is widely used in industries such as commercial concrete mixing stations, cement plants, stone factories, phosphate fertilizer plants, ceramics factories, and refractory materials factories. It can produce high-quality sand alone or be used for sand and stone production with shaping functionality. The product particle size can be adjusted flexibly and the machine can be customized according to needs.
The machine features a reinforced back shell structure with thickened, adjustable corrugated lining plates that are sturdy and do not deform.
Hydraulic opening allows for quick and convenient replacement and maintenance of internal parts, significantly reducing maintenance time.
The hammers can rotate in both directions, making it easy for one person to handle the hammer face replacement.
The gap between the grate bars and hammers can be flexibly adjusted, ensuring optimal hammer crushing efficiency and utilization.
Grate bars can be customized according to needs, with options for round hole and strip-shaped grate bars.
The finished product has a cubic shape, smooth particles, continuous grading, and adjustable fineness modulus.
| Model | Rotor Spec（Dia*L）(mm) | Size of opening (mm*mm) | Motor Power( kw) | Capacity（t/h） |
| ZSK0808 | φ800*800 | 800*350 | 75 | 20-40 |
| ZSK1010 | φ1000*1000 | 1000*400 | 55*2 | 40-50 |
| ZSK1013 | φ1000*1300 | 1300*500 | 75*2 | 60-80 |
| ZSK1215 | φ1200*1500 | 1500*500 | 110*2 | 80-100 |
| ZSK1318 | φ1300*1800 | 1800*600 | 132*2 | 100-120 |
| ZSK1520 | φ1500*1200 | 2000*700 | 160*2 | 120-150 |
