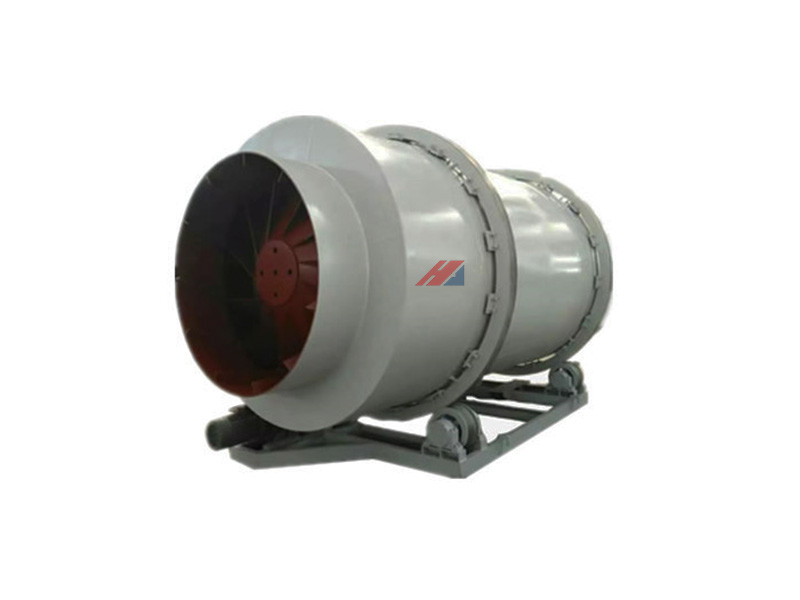

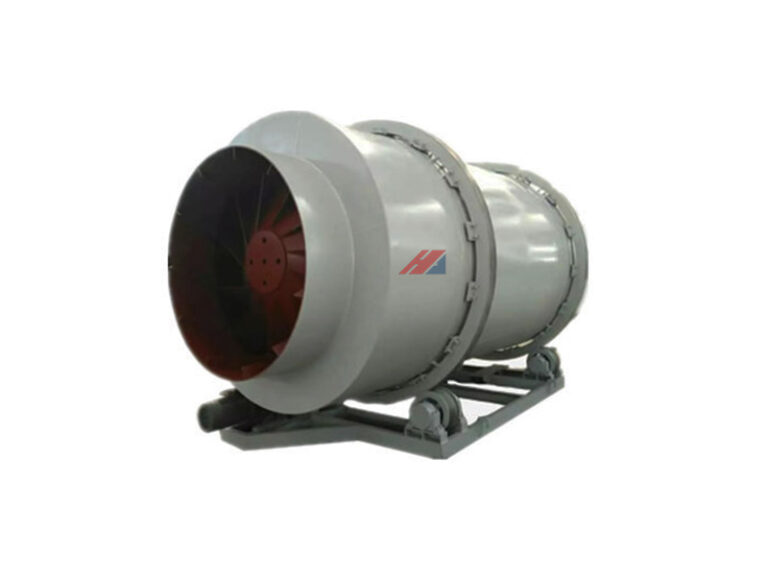

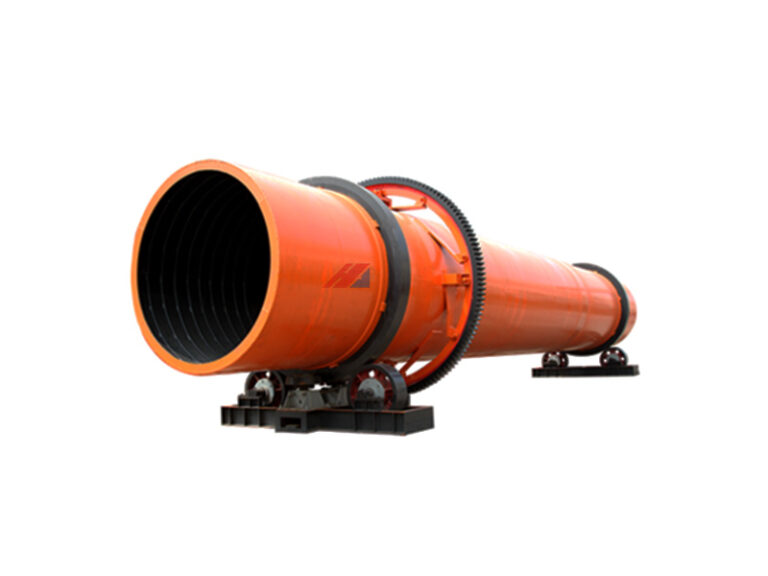

The rotary dryer is an industrial dryer used for bulk solid materials. It is typically chosen for its large processing capacity, robust structure, and strong adaptability to raw materials. Whether you need to dry fertilizers for effective granulation, sand for better quality, limestone for higher grinding efficiency, or control the moisture content of biomass materials for easier briquetting, the rotary dryer can help you achieve these goals. Our factory's dryers are primarily used in industries such as chemicals, mining, metallurgy, and more, including minerals, slag, coal, metal powders, clay, diatomite, kaolin, sand, brown coal, and silica sand. Rotary dryers can also be used in agriculture and fertilizer industries for drying straw, stalks, leaves, starch slurry, medicinal residue, fruit pomace, sugarcane residue, slurry, organic fertilizer, inorganic fertilizer, and more. Additionally, they are suitable for drying various crystalline materials, ceramic clay, magnetic powders, inorganic mud, lime slurry, alumina, and mineral sludge.
Effective and efficient drying performance.
Ensures consistent performance.
Adapts to different material requirements.
Tailored to meet specific drying needs based on material characteristics.
Ideal for drying high-moisture and high-viscosity materials, preventing material sticking to the walls.
| Model | Inclination (%) | Speed (r/min) | Inlet air temperature (℃) | Power ( kw) | Capacity (t/h) | Weight (t) |
| 600×6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
| 800×8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
| 800×10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
| 1000×10000 | 3-5 | 3-8 | ≤700 | 5.5 | 2-5 | 5.6 |
| 1200×12000 | 3-5 | 3-8 | ≤700 | 11 | 4-10 | 14.8 |
| 1500×12000 | 3-5 | 2-6 | ≤800 | 18.5 | 8-15 | 17.8 |
| 1800×18000 | 3-5 | 2-6 | ≤800 | 22 | 10-23 | 31 |
| 2000×18000 | 3-5 | 1.5-6 | ≤800 | 30 | 15-26 | 43 |
| 2200×18000 | 3-5 | 1.5-6 | ≤800 | 37 | 20-32 | 52 |
| 2400×20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-38 | 60 |
| 2800×20000 | 3-5 | 1.5-5 | ≤800 | 75 | 35-50 | 72 |
| 3000×25000 | 3-5 | 1.5-5 | ≤800 | 90 | 40-65 | 104.9 |
| 3200×25000 | 3-5 | 1.5-6 | ≤800 | 132 | 75-105 | 166 |
| 3600×25000 | 3-5 | 1.5-6 | ≤800 | 155 | 95-160 | 188 |
| Model | 2×4.5 | 2.2×5 | φ2.5×6 | φ2.7×6.5 | 3×6.5 | φ3.2×7 | φ3.6×8 | φ4.2×8 |
| Outer tube diameter(m) | 2 | 2.2 | 2.5 | 2.7 | 3.0 | 3.2 | 3.6 | 4.2 |
| Length of outer tube(m) | 4.5 | 5 | 6 | 6.5 | 6.5 | 7 | 8 | 8 |
| Cylinder volume(m³) | 14.13 | 18.99 | 29.43 | 37.19 | 45.92 | 56.27 | 81.39 | 110.78 |
| Cylinder speed(r/ min) | 4-10 | 4-10 | 4-10 | 4-10 | 4-10 | 4-10 | 4-10 | 4-10 |
| The maximum intake air temperature (℃) | 700-750 | 700-750 | 700-750 | 700-750 | 700-750 | 700-750 | 700-750 | 700-750 |
| Capacity(t/h) | 13-18 | 15-23 | 20-28 | 24-33 | 35-40 | 40-60 | 55-75 | 70-120 |
| Motor power( kw) | 5.5×2 | 7.5×2 | 5.5×4 | 7.5×4 | 11×4 | 15×4 | 18.5×4 | 22×4 |
