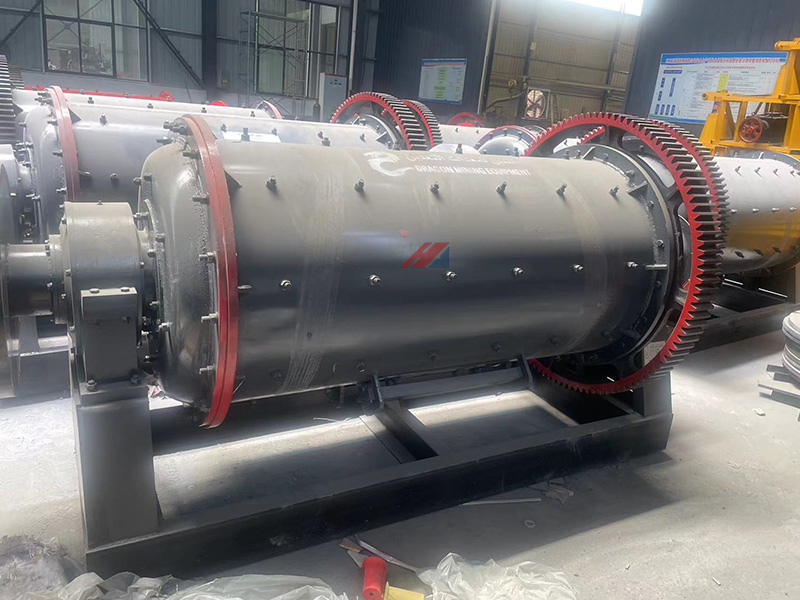

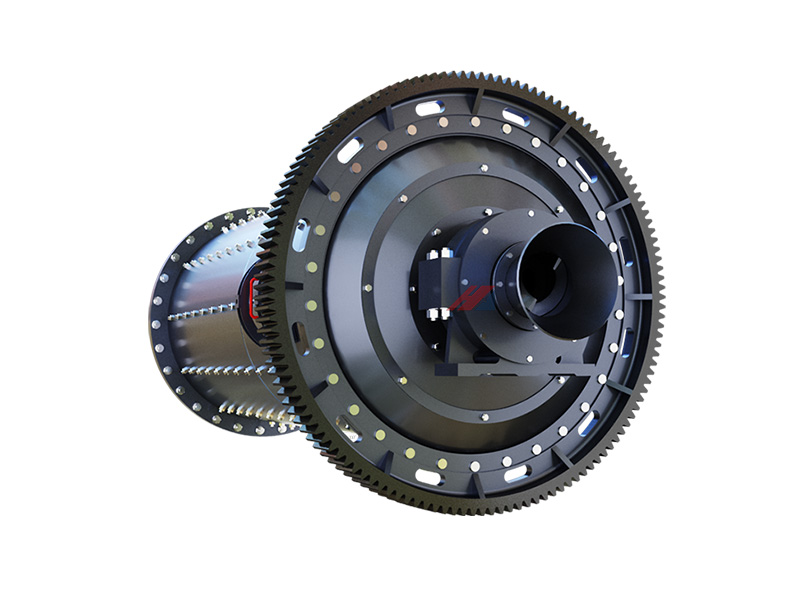

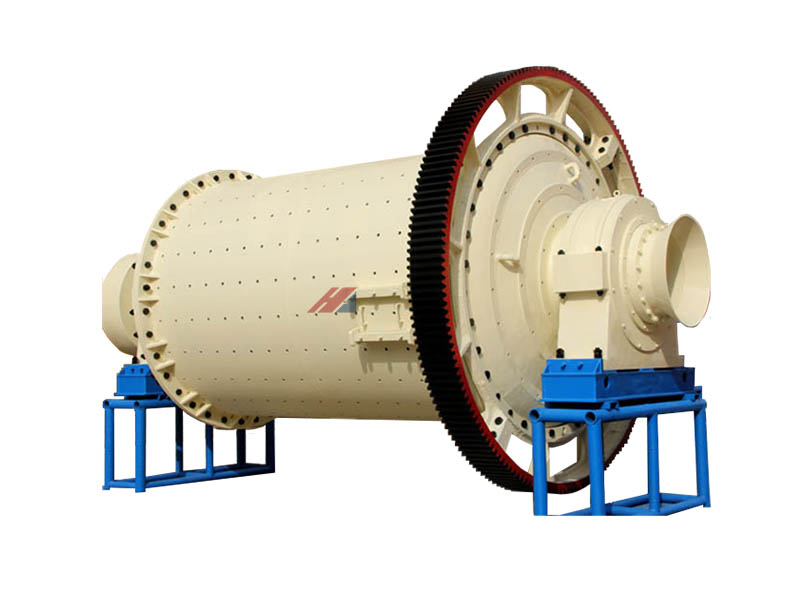

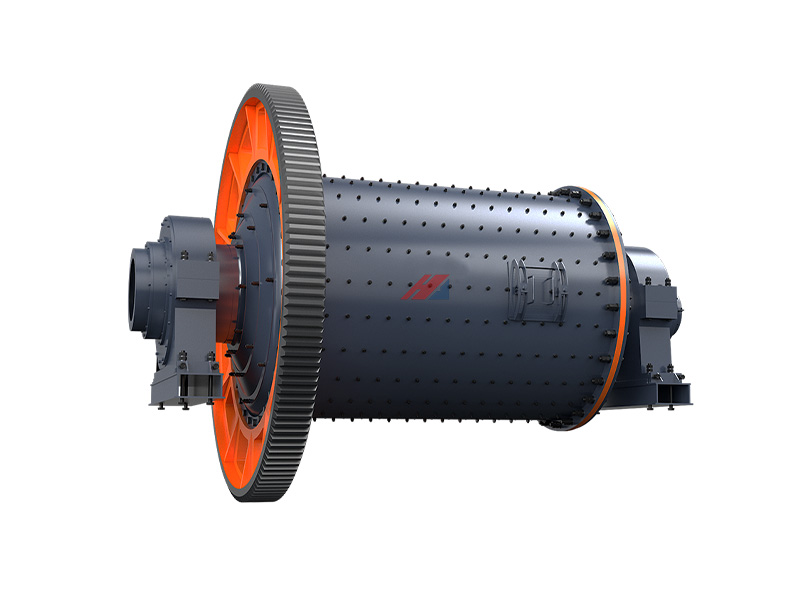

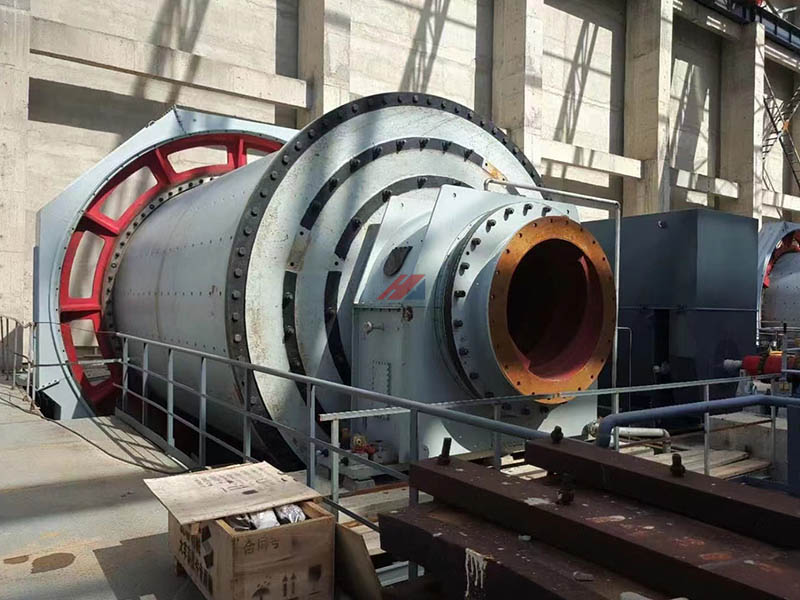

The rod mill is mainly used for processing and crushing ore materials such as feldspar, quartz, and pebbles. Steel rods rise to a certain height with the rotation of the mill due to friction and centrifugal force, then fall, continuously impacting the material to produce sand.
Saves over 40% of power compared to traditional equipment, reducing operational costs.
During the sand-making process, the proportion of medium-sized sand is high, and grading continuity is excellent.
The use of line contact impact prevents over-crushing by ensuring that crushed materials are not ground further.
| Model | Cylinder Size (D×L)(mm) | Effective volume(m³) | Balls weight (t) | Rotary speed (r/min) | Power (kw) | Discharge size (mm) | Capacity (t/h) | Weight (t) |
| MB0918 | φ900×1800 | 0.85 | 2.3 | 38 | 22 | 2.5-0.2 | 6-1.6 | 6.2 |
| MB0924 | φ900×2400 | 1.15 | 3.1 | 38 | 30 | 2.5-0.2 | 10-2.9 | 6.6 |
| MB1224 | φ1200×2400 | 2.2 | 6.5 | 32 | 55 | 2.5-0-2 | 13-5 | 13.5 |
| MB1530 | φ1500×3000 | 5.0 | 8 | 27 | 75 | 2.5-0.2 | 12-5.5 | 16.71 |
| MB1830 | φ1800×3000 | 6.5 | 17 | 22.8 | 132 | 2.5-0.2 | 20-9.5 | 29.8 |
| MB2122 | φ2100×2200 | 6.7 | 18 | 20.9 | 160 | 2.5-0.2 | 27-12 | 42.5 |
| MB2130 | φ2100×3000 | 9.2 | 25 | 20.9 | 160 | 2.5-0.2 | 30-13 | 43.9 |
| MB2136 | φ2100×3600 | 11.0 | 28 | 20.9 | 200 | 2.5-0.2 | 35-14.8 | 49.4 |
| MB2140 | φ2100×4000 | 12.2 | 31 | 20.9 | 220 | 2.5-0.2 | 38-17 | 50.3 |
| MB2145 | φ2100×4500 | 13.8 | 35 | 20.9 | 250 | 2.5-0.2 | 43-19 | 51.8 |
| MB2430 | φ2400×3000 | 12.2 | 31 | 19 | 250 | 2.5-0.2 | 47-22 | 56.0 |
| MB2436 | φ2400×3600 | 14.6 | 37 | 19 | 280 | 2.5-0.2 | 55-26 | 61.0 |
| MB2730 | φ2700×3000 | 15.3 | 35 | 17.5 | 315 | 5-0.8 | 125-37.5 | 75.6 |
| MB2736 | φ2700×3600 | 18.4 | 42 | 17.5 | 355 | 5-0.8 | 150-45 | 81.8 |
| MB2740 | φ2700×4000 | 20.5 | 47 | 17.5 | 400 | 5-0.8 | 165-50 | 84.3 |
| MB3040 | φ3000×4000 | 25.9 | 50 | 16.2 | 500 | 5-0.8 | 206-62 | 130 |
| MB3245 | φ3200×4500 | 33 | 56 | 15.5 | 630 | 5-0.8 | 228-70 | 138 |
| MB3248 | φ3200×4800 | 34 | 60 | 15.5 | 710 | 5-0.8 | 240-74 | 142 |
| MB3645 | 3600×4500 | 40.8 | 78 | 14.5 | 800 | 5-0.8 | 270-83 | 168 |
| MB3654 | 3600×5400 | 50 | 94 | 14.5 | 1000 | 5-0.8 | 340-103 | 192 |
