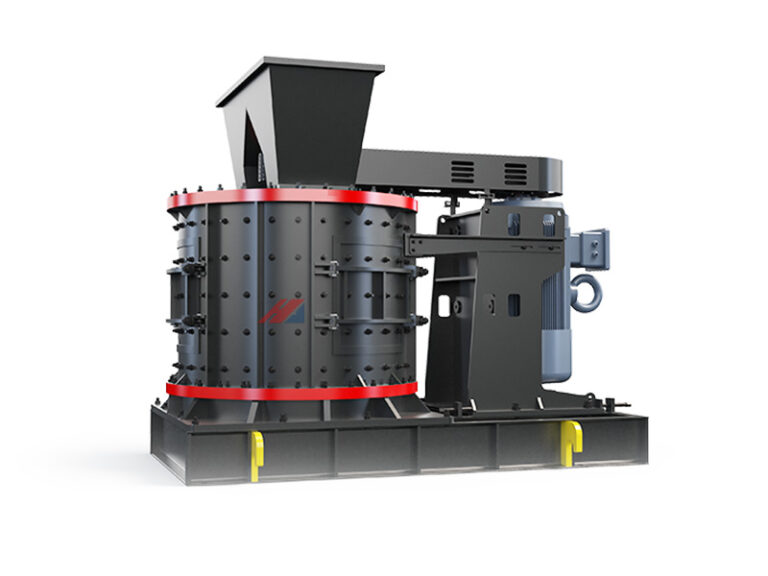

PLF Compound Crusher

Processing Capacity: 10-260 t/h
Feeding Size: <220 mm
Applicable Materials: Medium and small-sized crushing of cement raw materials and clinker, as well as for producing construction sand, iron ore, sandstone, gypsum, coal gangue, lump coal, and other medium-hard ores; also suitable for crushing iron ore, sandstone, gypsum, blast furnace slag, coal gangue, lump coal, and other medium-hard ores.

[email protected]

Share    

Introduction

The Vertical Composite Crusher is a new type of fine and coarse grinding product developed by optimizing the main technical parameters of similar crushers from both domestic and international sources. It features a high crushing ratio, low energy consumption, stable operation, simple structure, and ease of maintenance. It is a truly versatile, high-efficiency, low-cost new type of crushing equipment.

Advantages and Features

Low Wear Part Consumption

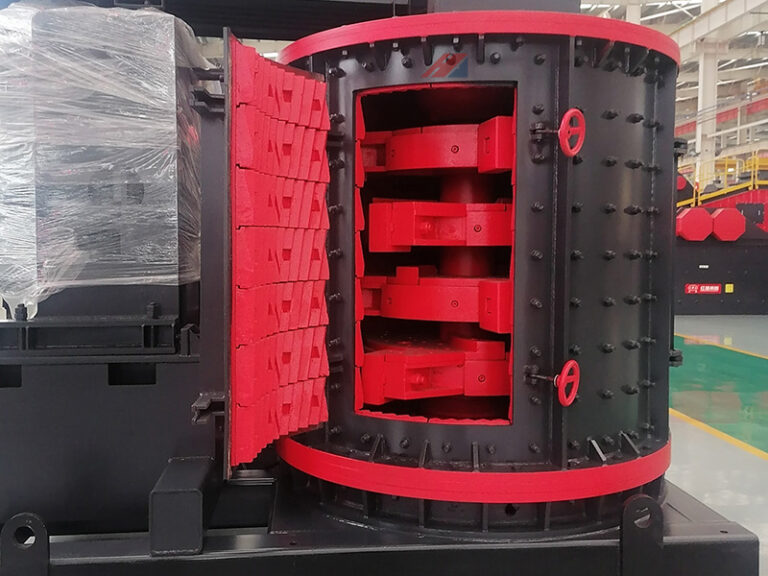

Adopts a stone-on-stone crushing principle, directly reducing equipment operating costs. The multi-stage adjustment device for the hammer head significantly extends its service life.

High Processing Capacity and Output

Compared to sand-making equipment with the same power, the vertical sand-making machine can increase output by approximately 30%, while ensuring stable operation.

Excellent Product Shape and High Yield

The finished product is cubic, with a reasonable grading and high yield. It can be used in conjunction with other crushing equipment, and the single machine can also meet the production requirements for the material meeting input size.

Simple Operation and High Flexibility

The equipment can be operated using a centralized electric control system, allowing for one-touch start and reducing the manual operating costs.

Technical Parameters

Model	Max Feed Size(mm)	Discharge size(mm)	Capacity（t/h）	Motor Power( kw)	Overall Dimension (mm)
PLF-800	≤ 50	≤ 3-5	10-20	22-37	2100×1200×1700
PLF-1000	≤ 80	≤ 3-5	20-40	45-75	2600×1400×1900
PLF-1250	≤ 150	≤ 3-5	40-70	75-132	2800×1600×2100
PLF-1500	≤ 180	≤ 3-5	70-100	132-200	3100×1900×2200
PLF-1750	≤ 200	≤ 3-5	130-190	200-315	3710×2360×2390
PLF-2000	≤ 220	≤ 3-5	200-260	315-355	4100×2660×2620

Note: The output will vary according to different materials, feed size and other factors. Technical parameters are subject to change without prior notice. The weight and dimensions of the equipment are subject to physical objects.
