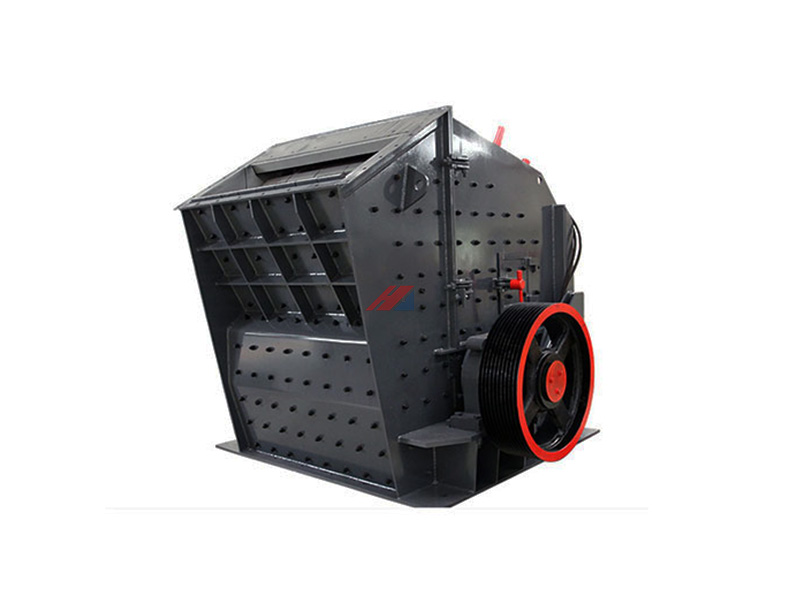

The impact crusher (commonly referred to as the impact breaker) is a new generation of impact crushing machine developed by Hengborui Machinery. It incorporates advanced domestic and international technologies and is designed based on the specific requirements of the domestic sand and gravel industry. Typically used as a secondary crushing device, it achieves "more crushing, less grinding". The impact crusher produces well-shaped, cubic finished stones, with adjustable discharge sizes and diverse specifications. It can process various medium-hard and soft materials (such as limestone, coal gangue, concrete, etc.) and is widely used in industries like railways, highways, cement, and chemical engineering.
Provides a high crushing ratio and excellent stone shaping effect.
Offers good impact resistance and wear resistance, maintaining stable discharge sizes.
Extends replacement intervals, reduces spare parts inventory, and saves costs.
Allows for high precision and fast adjustment, reduces labor intensity, and shortens downtime.
| Model | Max. Feeding Size(mm) | Capacity (t/h) | Power (kw) |
| PFW1313 | 600 | 200-380 | 200 |
| PFW1315 | 600 | 250-500 | 250 |
| PFW1520 | 800 | 380-800 | 2×(200-250) |
| PFW1620 | 800 | 500-1000 | 2×(200-250) |
| PFW2023 | 1000 | 800-1600 | 2×500 |
| Model | Rotor Spec(mm) | Feeder Opening Size(mm) | Max. feed size (mm) | Capacity (t/h) | Power (kw) | Weight( Excluding Electric Motor) (t) |
| PF-1007 | φ1000×700 | 400×730 | 300 | 25-45 | 37-55 | 9.5 |
| PF-1010 | φ1000×1050 | 400×1080 | 350 | 50-80 | 55-75 | 12.2 |
| PF-1210 | φ1250×1050 | 400×1080 | 350 | 80-120 | 110-132 | 14.1 |
| PF-1214 | φ1250×1400 | 400×1430 | 350 | 100-160 | 132-160 | 16.8 |
| PF-1315 | φ1320×1500 | 860×1520 | 350 | 150-220 | 200-250 | 21 |
| PF-1415 | φ1450×1500 | 900×1650 | 350 | 200-260 | 250-280 | 24 |
| PF-1515 | φ1550×1500 | 900×1650 | 350 | 200-350 | 280-315 | 27 |
| PF-1520 | φ1500×2000 | 695×2030 | 350 | 250-400 | 355-400 | 36 |
