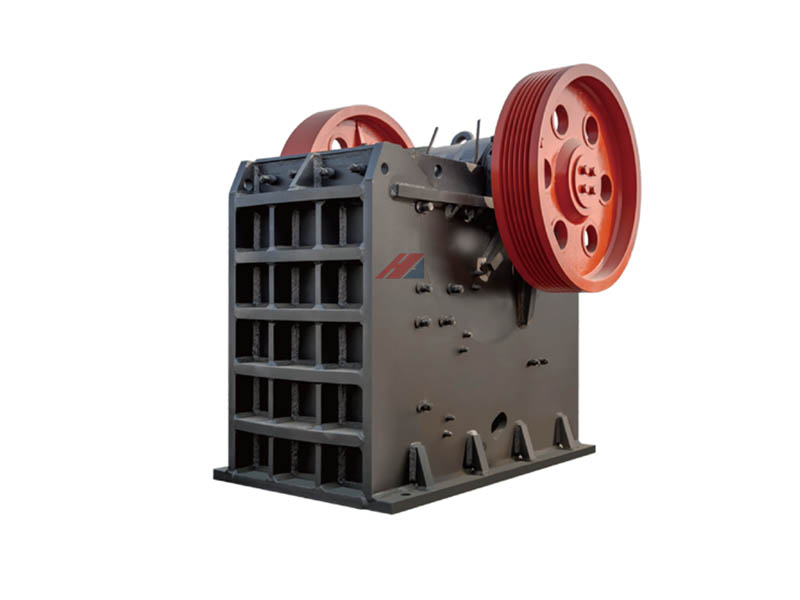

The jaw crusher dominates the crushing equipment field and is primarily suitable for various ores and large materials. As the first in the crushing production line, it is responsible for coarse and medium crushing operations. With advantages like stable operation, large crushing ratio, eco-friendliness, low energy consumption, and long service life, its application range has expanded from mining to construction materials, highways, railways, water conservancy, and chemical industries.
The jaw crusher operates on a simple working principle, and its hydraulic device allows adjustment of the discharge opening size.
The jaw crusher’s side liners are made of chrome alloy cast steel, providing enhanced wear resistance.
With a capacity range of 1-1200 t/h, the jaw crusher can be customized to meet higher capacity demands.
Equipped with a heavy-duty forged eccentric shaft, high manganese steel jaw plate, and high-grade cast steel movable jaw assembly, the equipment offers superior load capacity and enhanced stability.
| Model | Feeder Opening Size(mm) | Max. Feeding Size(mm) | Outlet adjusting range(mm) | capacity(t/h) | Speed(r/min) | Motor Power(kw) | Weight（t） | Overall Dimension （L×W×H）(mm) |
| PE-150*250 | 150*250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720*660*850 |
| PE-200*300 | 200*300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910*750*990 |
| PE-200*350 | 200*350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000*870*990 |
| PE-250*400 | 250*400 | 210 | 20-60 | 5-21 | 300 | 15 | 2.8 | 1300*1090*1270 |
| PE-400*600 | 400*600 | 340 | 40-100 | 16-64 | 275 | 30 | 7 | 1730*1730*1630 |
| PE-500*750 | 500*750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980*2080*1870 |
| PE-600*900 | 600*900 | 500 | 65-160 | 50-160 | 250 | 75 | 17 | 2190*2206*2300 |
| PE-750*1060 | 750*1060 | 630 | 80-140 | 110-320 | 250 | 110 | 29 | 2660*2430*2800 |
| PE-800*1060 | 800*1060 | 640 | 100-190 | 130-330 | 250 | 110 | 29.8 | 2710*2430*2800 |
| PE-870*1060 | 870*1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810*2430*2800 |
| PE-900*1060 | 900*1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870*2420*2940 |
| PE-900*1200 | 900*1200 | 750 | 95-165 | 220-450 | 200 | 132 | 52 | 3380*2870*3330 |
| PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 200 | 160 | 55 | 3480*2876*3330 |
| PE-1200*1500 | 1200*1500 | 1020 | 150-350 | 400-800 | 180 | 250 | 100.9 | 4200*3300*3500 |
| PE-1500*1800 | 1500*1800 | 1200 | 220-350 | 500-1000 | 180 | 280-355 | 139 | 5160*3660*4248 |
| PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200*1530*1060 |
| PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 330 | 22 | 5.5 | 1380*1750*1540 |
| PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560*1950*1390 |
| PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140*1660*1500 |
| PEX-300*1300 | 300*1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720*1950*1600 |
