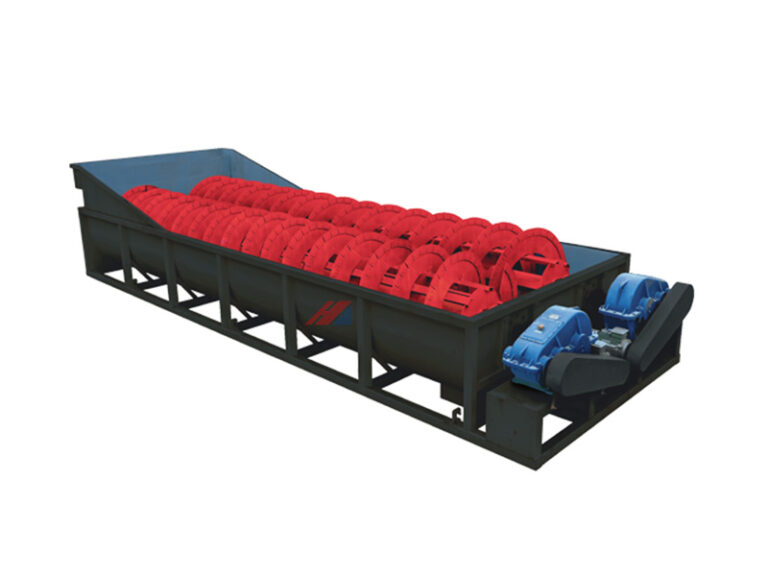

The spiral sand washer is suitable for washing, grading, and dewatering operations in industries such as metallurgy, building materials, and hydropower. It is used for the washing of fine and coarse-grained materials, particularly suitable for building sand and road construction sand and gravel. The spiral sand washer has low power consumption, high washing efficiency, and excellent cleaning and dewatering effects. It features a well-sealed structure, with a fully enclosed transmission device and adjustable weir plate, ensuring high efficiency, durability, effective cleaning, dewatering, and stable fine product output.
The equipment is energy-efficient and wear-resistant. The spiral blades are equipped with wear-resistant edges to prevent abrasion from stirring
The bearing in the water tank area is internally installed, with the drainage device located at the bottom. Multiple rubber seals are used in rotating parts, effectively reducing the failure rate.
Installation layout plans can be designed according to the actual site conditions provided by the customer.
| Modle | Spiral Dia(mm) | Spiral Speed (r/min) | Feeding Size(mm) | Gradient (°) | Motor Power(kw) | Sink length (mm) | Capacity (t/h) |
| LX920-8m | 920 | 8-12 | ≤10 | 18 | 11.0 | 8000 | 40-60 |
| 2LX920-8m | 920 | 8-12 | ≤10 | 18 | 11×2 | 8000 | 90-120 |
| LX1120-8m | 1200 | 8-12 | ≤10 | 18 | 18.5 | 8000 | 60-80 |
| 2LX1120-8m | 1200 | 8-12 | ≤10 | 18 | 18.5×2 | 8000 | 180-260 |
| LX1500-8m | 1500 | 8-12 | ≤10 | 18 | 18.5 | 8000 | 100-120 |
| LX1500-9m | 1500 | 8-12 | ≤10 | 18 | 22 | 9000 | 100-120 |
| 2LX1500-8m | 1500 | 8-12 | ≤10 | 18 | 22×2 | 8000 | 240-300 |
