The tire-type mobile crushing station is primarily used for demolition sites in urban areas for the crushing and recycling of construction waste. However, due to its high level of integration and strong mobility, it is also frequently used in other industries where the crushing site needs to follow the material, such as in mining ore crushing, construction waste recycling, aggregate production, and highway, railway, and bridge construction.
The tire-type mobile crushing station consists of several components besides the mobile chassis: construction waste crushing equipment, construction waste screening equipment, magnetic separators, control equipment, power sources (motors), feeding equipment, and belt conveyors. The construction waste crushing equipment can vary based on the main components and size of the construction waste, with commonly used types including jaw crushers, impact crushers, cone crushers, and vertical shaft impact crushers. Detailed types can be found in the technical parameters.
Complete performance with a rational and compact combination, requiring minimal space at the work site.
Compact vehicle structure with a small turning radius, low requirements for road transportation conditions, and convenient and quick site entry and exit.
The mobile crushing station can work directly at the raw material site, reducing transportation links and saving raw material transportation costs.
Provides a variety of personalized configurations based on customer requirements and actual conditions. It can operate as a single unit or in conjunction with multiple units, achieving functions such as single-unit crushing, multi-unit combined classification and crushing, and screening.
The mobile crushing station can be equipped with a generator set to meet operational needs in situations without electricity or during power outages, ensuring continuous operation and production.
With nearly 20 years of experience in mining equipment production, the series mobile crushing stations are designed with simple, rational, and compact structures. Each product undergoes strict factory inspection to ensure high quality.

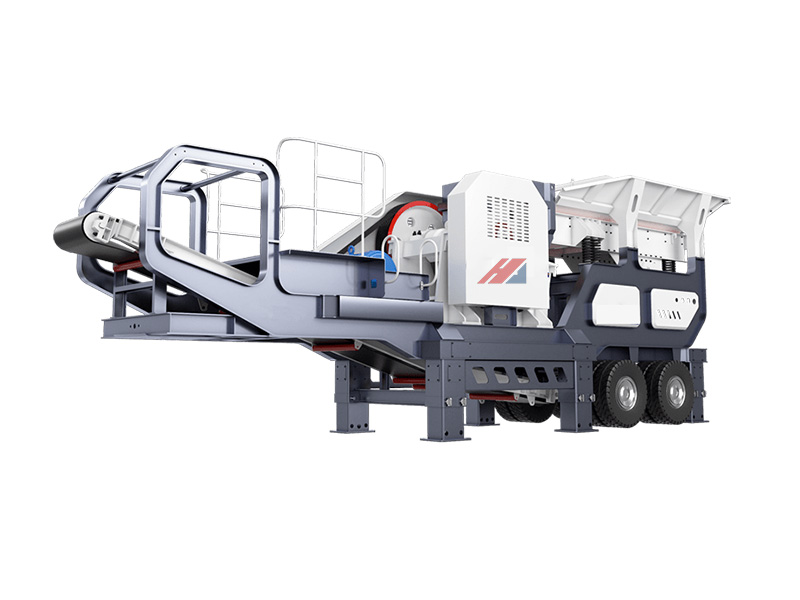

Coarse crushing portable plant
| Series | Standard Model | Feeding equipment | Crushing equipment | Transportation dimension(mm) | Weight（t） |
| Coarse crushing portable plant | HKE600-1 | ZGC0936 | PE600×900 | 12150×2600×3950 | 44 |
| HKE750-1 | ZGC1139 | PE750×1060 | 13000×2850×4400 | 61 | |
| HKE760-1 | ZGC1139 | HPEW760 | 13000×2800×4200 | 56 | |
| HKE860-1 | ZGC1345 | HPEW860 | 14600×3000×4500 | 65 | |
| HKF1315Ⅱ-1 | ZGC1345 | HKF1315Ⅱ | 14600×3100×4500 | 62 |

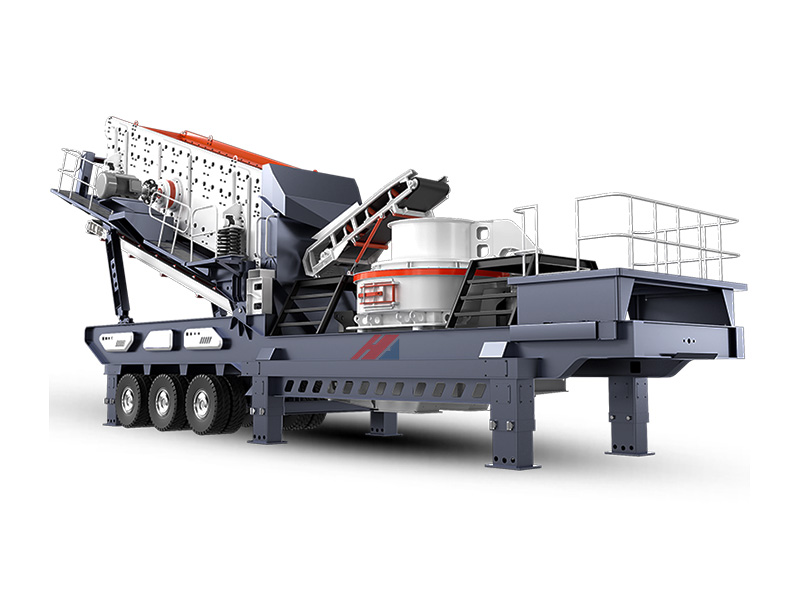

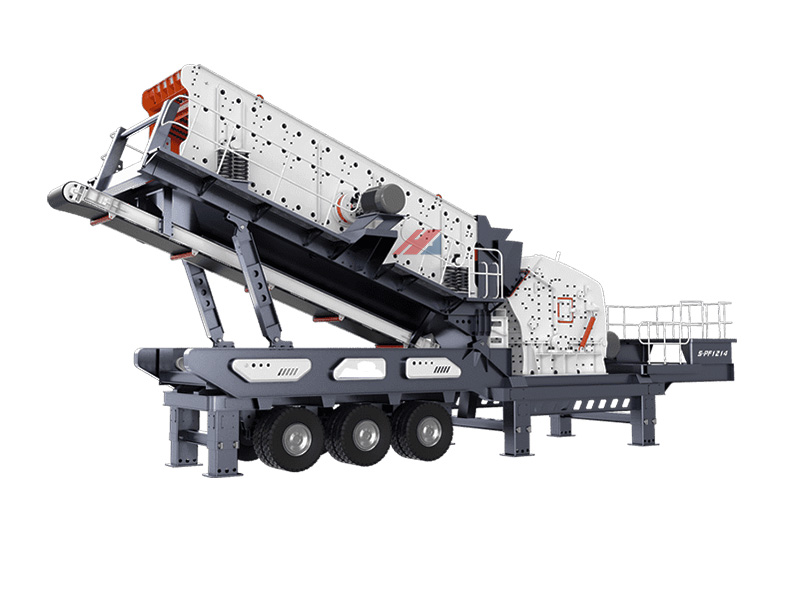

Medium and fine crushing and screening portable plant
| Series | Standard Model | Screening equipment | Crushing equipment | Transportation dimension(mm) | Weight（t） |
| 中细碎筛分 移动站 | H-KH200-2 | 3YKZ1860 | HP200 | 13800×3000×4500 | 59 |
| H-KH300-2 | 3YKZ2160 | HP300 | 13800×3000×4500 | 54 | |
| H-KH300-2 | 4YKZ2160 | HP300 | 13800×3150×4200 | 56 | |
| H-KF1214 | 3YKZ1860 | PF1214 | 13800×3000×4500 | 53 | |
| H-KF1214 | 3YKZ1860 | PFW1214 | 13800×3000×4500 | 50 | |
| H-KF1315 | 3YKZ2160 | PF1315 | 13800×3150×4500 | 62 | |
| H-KF1315 | 3YKZ2160 | PFW1315 | 13800×3150×4500 | 60 | |
| H-KF1315 | 4YKZ2160 | PFW1315 | 13800×3150×4500 | 62 | |
| H-KF1318 | 3YKZ2160 | PFW1318 | 13800×3150×4500 | 66 | |
| H-KS2160 | 3YKZ2160 | 13800×3000×4200 | 31 |

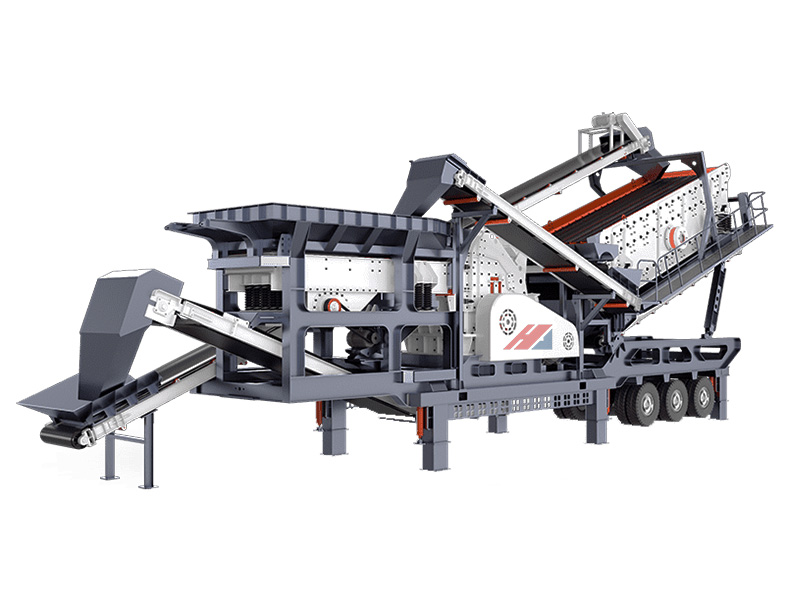

Four-in-one portable plant
| Series | Standard Model | Feedding& screening equipment | Crushing equipment | Transportation dimension(mm) | Weight（t） |
| 四组合移动站 | HKE400C55-4 | 3YKZ1237 | PE400×600 | 15150×2800×4500 | 47 |
| ZGC960×3500 | PYB900 | ||||
| HKE500C55-4 | 3YKZ1237 | PE500×750 | 15150×2800×4500 | 53 | |
| ZGC960×3500 | PYB900 | ||||
| HKE500C75-4 | 3YKZ1237 | PE500×750 | 15150×2800×4500 | 57 | |
| ZGC960×3500 | CSB75 |
