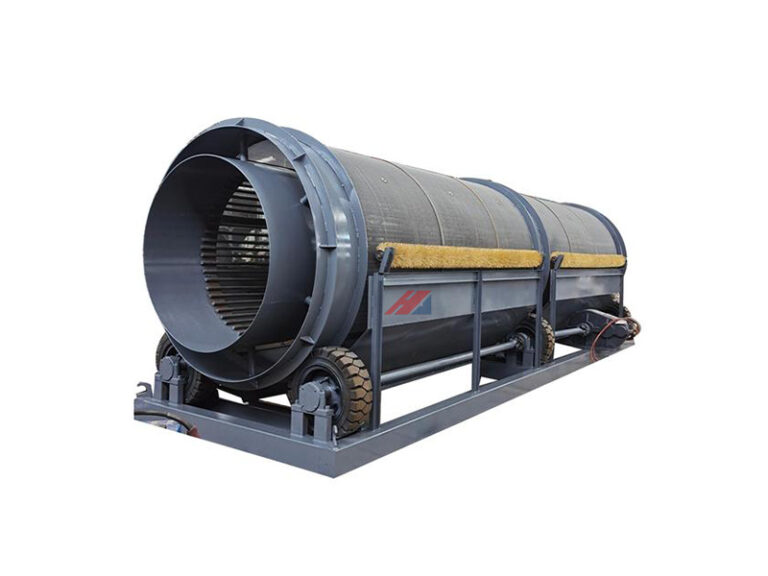

The drum screen is an essential screening device in fields such as batching plants, road and bridge projects, construction sites, and sand mining operations. When used in conjunction with other equipment, its powerful screening capabilities play a crucial role in the production process. It significantly saves labor and costs, improves project quality, accelerates project progress, and enhances economic benefits.
When materials enter the drum screen, they are continuously turned and rolled on the screening surface due to the drum's inclination and rotation. Qualified materials fall into the receiving hopper, while unqualified materials are discharged through the waste outlet at the rear of the drum screen, completing the screening process.
The mesh is not easily clogged, with screening efficiency increased by more than 1.5 times compared to previous equipment.
The screening drum can be closed, making it easy to shut and collect dust.
High degree of automation with automatic controls.
Effectively reduces vibration, making the machine run more smoothly, occupying less space, and easier to process.
| Specification | Cylinder | Rotate speed (r/min) | Gradient (°) | Power (kw) | Capacity (t/h) | Overall dimension (L×W×H)(mm) | |
| Diameter(mm) | Length(mm) | ||||||
| GS1.0×3.0 | 1000 | 3000 | 22 | 2-9 | 5.5 | 20-60 | 3500×1400×2200 |
| GS1.2×4.5 | 1200 | 4500 | 17 | 2-9 | 7.5 | 30-80 | 5700×1600×2400 |
| GS1.5×5.0 | 1500 | 5000 | 14 | 2-9 | 11 | 80-160 | 6860×1900×2810 |
| GS1.6×6.0 | 1600 | 6000 | 12 | 2-9 | 15 | 110-260 | 7300×2000×3000 |
| GS1.8×6.5 | 1800 | 6500 | 11.5 | 2-9 | 18.5 | 220-380 | 9000×2200×3200 |
