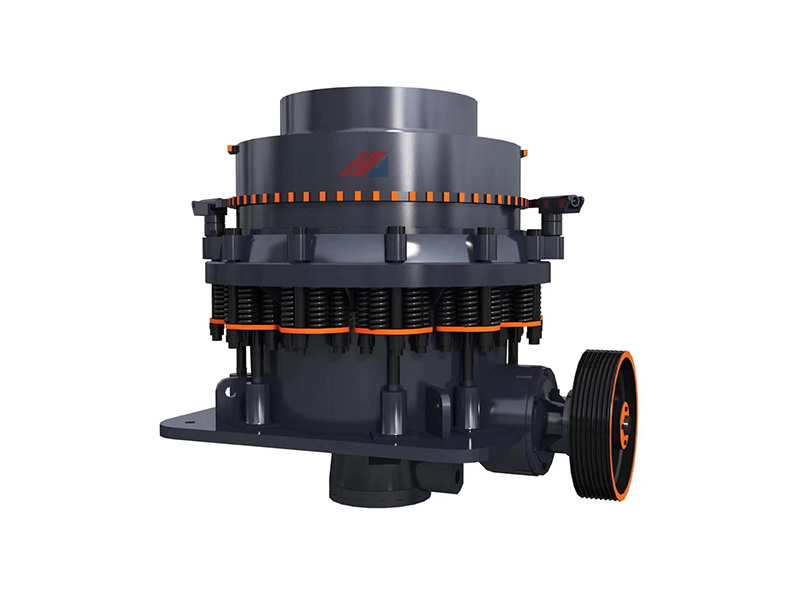

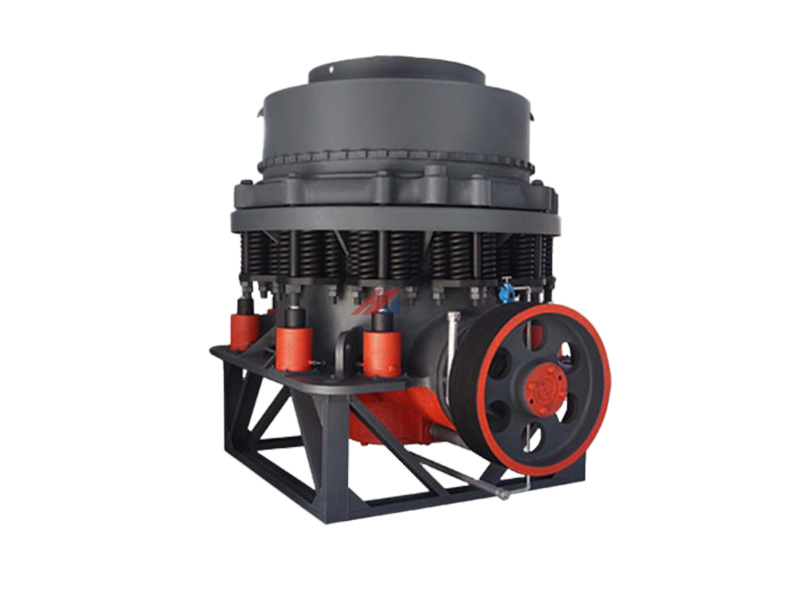

The CS Simmons Cone Crusher is designed and developed based on user requirements and the principle of layer crushing, incorporating high frequency, optimized cavity shape, and reasonable stroke into a modern high-performance crusher. It is built to deliver high performance with reduced grinding and increased crushing efficiency.
Offers low operating costs, easy adjustment, and practical economic use.
Various cavity types available to meet different customer needs.
Equipped with an overload protection device for added safety.
The discharge opening is adjusted through a hydraulic push cylinder, making adjustments convenient.
| model | Cavity type | Diameter(mm) | Adjusting Range ofDischargeOpening (mm) | Max Feed Size(mm) | Capacity(t/h) | Motor Power( kw) | Overall Dimension (mm) |
| CS75 | 标准粗型 | 900(3') | 13-38 | 150 | 59-163 | 75 | 2656×1636×2241 |
| CS75 | 标准中型 | 900(3') | 9-22 | 85 | 45-91 | 75 | 2656×1636×2241 |
| CS75 | 短头细型 | 900(3') | 3-13 | 35 | 27-90 | 75 | 2656×1636×2241 |
| CS110 | 标准粗型 | 1200(4') | 19-50 | 180 | 110-250 | 110 | 2821×1974×2651 |
| CS110 | 标准中型 | 1200(4') | 13-38 | 130 | 80-180 | 110 | 2821×1974×2651 |
| CS110 | 标准细型 | 1200(4') | 9-31 | 90 | 63-140 | 110 | 2821×1974×2651 |
| CS160 | 标准粗型 | 1295(4 1/4') | 19-51 | 205 | 172-349 | 160 | 2983×1866×3156 |
| CS160 | 标准中型 | 1295(4 1/4') | 16-38 | 178 | 132-253 | 160 | 2983×1866×3156 |
| CS160 | 标准细型 | 1295(4 1/4') | 13-31 | 115 | 109-181 | 160 | 2983×1866×3156 |
| CS220 | 标准粗型 | 1400(4 1/2') | 30-60 | 235 | 210-530 | 220 | 3360×2650×3050 |
| CS220 | 标准中型 | 1400(41/2') | 22-45 | 180 | 180-475 | 220 | 3360×2650×3050 |
| CS220 | 标准细型 | 1400(4 1/2') | 19-40 | 100 | 130-260 | 220 | 3360×2650×3050 |
| CS250 | 标准粗型 | 1650(5 1/2') | 25-64 | 228 | 299-635 | 250 | 3941×2954×3771 |
| CS250 | 标准中型 | 1650(5 1/2') | 22-51 | 205 | 258-417 | 250 | 3941×2954×3771 |
| CS250 | 标准细型 | 1650(5 1/2') | 16-38 | 178 | 181-327 | 250 | 3941×2954×3771 |
| CS315 | 标准粗型 | 2135(7') | 31-64 | 314 | 1125-1814 | 400 | 4613×3302×4638 |
| CS315 | 标准中型 | 2135(7') | 25-51 | 284 | 862-1424 | 400 | 4613×3302×4638 |
| CS315 | 标准细型 | 2135(7') | 19-38 | 236 | 544-1034 | 400 | 4613×3302×4638 |
