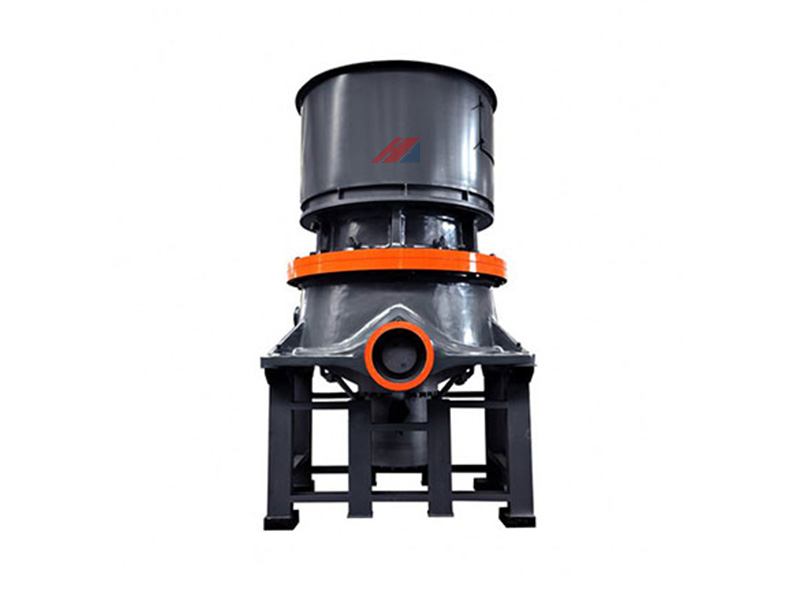

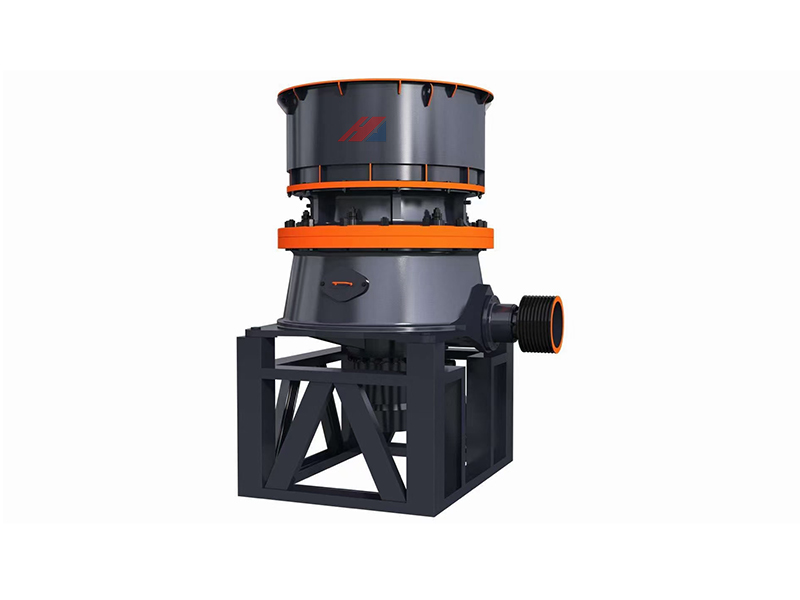

The Single-Cylinder Hydraulic Cone Crusher is widely used in various industries including mining, metallurgy, building materials, highways, railways, water conservancy, and chemical industries. It is suitable for crushing materials like iron ore, limestone, and granite with medium to high hardness. This machine offers significant crushing capacity, continuous and stable operation, uniform particle shape, automatic hydraulic clearing, and high processing capacity, making it ideal for medium and fine crushing.
Delivers rounded particles with high production and strong crushing capability.
Provides continuous and stable operation, with automatic overload protection to prevent damage from iron contamination.
The rotating feed mechanism ensures even wear of the lining plates.
Equipped with automatic overload protection to prevent damage from iron block ingress.
Model | CS100 | CH100 | CS430 | CH430 | CS440 | CH440 | CS660 | CH660 | CH870 |
Weight( kg) | 7350 | 5700 | 12000 | 9200 | 19300 | 14300 | 35700 | 26800 | 49800 |
Max Maintenance Weight (kg) | 2800 | 2000 | 5200 | 3000 | 8200 | 4800 | 16800 | 8600 | 13200 |
Motor Power( kw) | 90 | 90 | 132 | 132 | 220 | 220 | 315 | 315 | 500 |
Model | Cavity type | Max Feed Size(mm) | (CSS) Discharge ports (CSS) correspond to output(t/h) | |||||||||||||||
19mm | 22mm | 25mm | 29mm | 32mm | 35mm | 38mm | 41mm | 44mm | 48mm | 51mm | 54mm | 60mm | 64mm | 70mm | 76mm | |||
CS100 | M | 170 | 85-90 | 105-145 | 125-175 | 145-200 | 165-215 | |||||||||||
CS430 | EC | 360 | 126 | 138-173 | 147-230 | 156-293 | 165-310 | 174-327 | 183-344 | 196-306 | 205-256 | |||||||
C | 300 | 108 | 116-145 | 127-199 | 135-254 | 144-270 | 152-285 | 161-301 | 196-264 | 108 | ||||||||
MC | 235 | 91 | 98-123 | 106-166 | 116-218 | 124-232 | 131-246 | 139-261 | 147-275 | 154-241 | 165 | |||||||
CS440 | EC | 450 | 267 | 282-353 | 298-446 | 313-563 | 334-601 | 350-524 | 365-456 | |||||||||
C | 400 | 225 | 239-299 | 254-381 | 269-484 | 284-511 | 298-448 | 318-398 | 333 | |||||||||
MC | 300 | 195 | 214-267 | 228-342 | 242-435 | 256-461 | 270-486 | 284-426 | 303-378 | 317 | ||||||||
CS660 | EC | 560 | 349 | 368-460 | 392-588 | 410-718 | 428-856 | 465-529 | 489-978 | 525-1050 | 562-983 | |||||||
C | 500 | 318 | 336-420 | 353-618 | 376-753 | 394-788 | 411-823 | 446-892 | 469-822 | 504-631 |
Model | Cavity type | Max. Feed Size(mm) | (CSS) Discharge ports (CSS) correspond to output(t/h) | ||||||||||||||
6mm | 8mm | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 44mm | 51mm | 50mm | 64mm | 71mm | |||
CH100 | M | 105 | 55-60 | 60-85 | 65-95 | 70-100 | 75-90 | ||||||||||
MF | 85 | 45-50 | 50-70 | 55-80 | 60-85 | 65-90 | 65-80 | ||||||||||
EF | 32 | 40-55 | 40-60 | 45-70 | 55-75 | 60-75 | 65 | ||||||||||
CH430 | EC | 185 | 69-108 | 75-150 | 80-161 | 86-171 | 91-182 | 104-208/ | 115-208 | ||||||||
C | 145 | 66-131 | 71-142 | 76-152 | 81-162 | 86-173 | 98-197 | 109-150 | |||||||||
MC | 115 | 57 | 62-140 | 67-151 | 72-162 | 77-173 | 82-184 | 93-145 | |||||||||
M | 90 | 64-84 | 69-131 | 75-142 | 80-152 | 86-162 | 91-154 | 104 | |||||||||
MF | 75 | 61 | 65-106 | 70-115 | 76-124 | 81-126 | 87-114 | 92 | |||||||||
F | 50 | 48-78 | 51-83 | 54--88 | 59-96 | 63-103 | 68-105 | 72-95 | 77 | ||||||||
EF | 35 | 70-90 其中80%小于5mm-5.6mm | |||||||||||||||
CH440 | EC | 215 | 114-200 | 122-276 | 131-294 | 139-313 | 159-357 | 175-395 | 192-384 | ||||||||
C | 175 | 101 | 109-218 | 117-292 | 125-312 | 133-332 | 151-378 | 167-335 | 183-229 | ||||||||
MC | 140 | 97-122 | 105-262 | 113-282 | 120-301 | 128-320 | 146-328 | 161-242 | |||||||||
M | 110 | 117-187 | 126-278 | 136-298 | 145-318 | 154-339 | 175-281 | 194 | |||||||||
MF | 85 | 114 | 124-227 | 134-245 | 144-263 | 153-281 | 163-299 | 186-248 | |||||||||
F | 70 | 90-135 | 96-176 | 104-191 | 112-206 | 120-221 | 129-236 | 137-251 | 156-208 | ||||||||
EF | 38 | 100-125其中80%小于6mm-7.5mm | |||||||||||||||
CH660 | EC | 270 | 177 | 190-338 | 203-436 | 216-464 | 246-547 | 272-605 | 298-662 | 328-511 | |||||||
CX | 235 | 174-194 | 187-374 | 200-488 | 212-519 | 242-592 | 268-654 | 293-521 | 323-359 | ||||||||
C | 215 | 171-190 | 184-367 | 196-480 | 209-510 | 238-582 | 263-643 | 288-512 | 317-353 | ||||||||
MC | 175 | 162-253 | 174-426 | 186-455 | 198-484 | 226-552 | 249-499 | 273-364 | |||||||||
M | 135 | 197-295 | 211-440 | 226-470 | 240-500 | 274-502 | 302-403 | ||||||||||
MF | 115 | 192 | 207-369 | 222-396 | 237-423 | 252-450 | 287-451 | 318-363 | |||||||||
F | 90 | 195-304 | 210-328 | 225-352 | 241-376 | 256-400 | 292-401 | 323 | |||||||||
EF | 65 | 211-293 | 227-316 | 244-298 | 261-290 | ||||||||||||
CH870 | EC | 300 | 448-588 | 477-849 | 544-968 | 601-1070 | 658-1172 | 725-1291 | 782-1393 | 849-1512 | 906-1331 | ||||||
C | 240 | 406 | 433-636 | 461-893 | 525-1018 | 581-1125 | 636-1232 | 700-1357 | 756-1464 | 820-1461 | 876-1286 | ||||||
MC | 195 | 380-440 | 406-723 | 432-837 | 492-954 | 544-1055 | 596-1155 | 657-1272 | 708-1373 | 769-1370 | 821-1206 | ||||||
M | 155 | 400-563 | 428-786 | 455-836 | 519-953 | 573-1054 | 628-1154 | 692-1271 | 746-1372 | 810-1248 | 865-1098 | ||||||
MF | 100 | 379-424 | 407-716 | 434-765 | 462-814 | 527-928 | 852-942 | 638-789 | 702 | ||||||||
F | 90 | 357-395 | 385-656 | 414-704 | 442-752 | 470-800 | 535-912 | 592-857 | 649-718 | ||||||||
EF | 80 | 280-405 | 304-517 | 328-558 | 352-598 | 376-639 | 400-680 | 455-775 | 503-758 | 551-669 |
