product

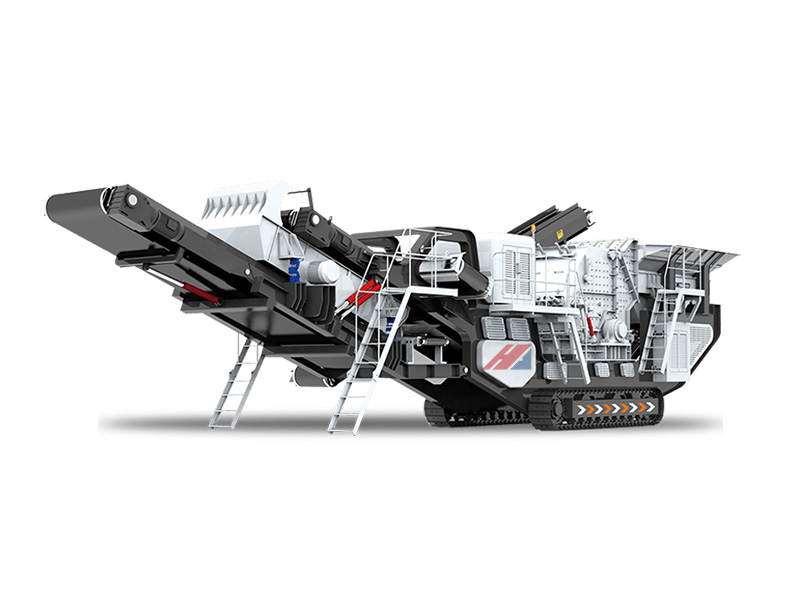

The crawler mobile crushing station is a high-efficiency crushing equipment that features self-driving capabilities, advanced technology, and comprehensive functions. This equipment can reach any location on the job site under any terrain conditions, reducing material handling operations and facilitating coordination with all auxiliary machinery. With wireless remote control, the crusher can be easily moved onto a trailer and transported to the working site. No assembly time is required, allowing the equipment to be put into operation as soon as it arrives at the site. The mobile crushing station features a large crushing ratio, optimized design to meet the technical requirements of crushers, high productivity, and uniform finished product size.
The crawler mobile crushing station is a new type of mobile crushing station developed by engineers, incorporating the advantages of advanced and stable mobile crushing stations from around the world.
Crawler mobile crushing stations can be divided into four major series: Crawler Cone Crushing Station, Crawler Jaw Crushing Station, Crawler Impact Crushing Station, and Crawler Screening Crushing Station. See technical parameters for details.
The crawler mobile crushing station is lightweight and compact, making it particularly suitable for working in narrow spaces.
Crawler movement prevents road surface damage, and the equipment is equipped with multifunctional attachments, making it versatile.
Combines feeding, crushing, and conveying processes. The optimized process flow enhances rock crushing, aggregate production, and open-pit mining performance. Different models can be combined to form a powerful crushing production line to meet various processing needs.
Allows for on-the-spot steering. Standard configuration includes quick-change devices and comprehensive safety protection features, making it especially suitable for narrow and complex areas.
High fuel savings.
Comes with an integrated power unit.
Meets the crushing requirements of mining, hydropower stations, coal mines, and other engineering projects.
Track mobile coarse crushing plant
| Model | Max. Feed Size( mm) | Feed Opening ( mm) | Feed Height ( mm) | Capacity(t/h) | Transport Dimension( mm) |
| HKE760 | 620 | 760×1100 | 4520 | 150-350 | 13050×2950×4050 |
| HKJ110 | 660 | 800×1100 | 4520 | 215-510 | 13050×3000×3800 |
| HKF1214II | 500 | 1100×1430 | 4175 | 130-200 | 12740×3000×3785 |
| HKF1315II | 600 | 1200×1530 | 4330 | 180-320 | 14355×3000×3800 |
Track mobile medium and fine crushing plant
| Model | Max. Feed Size( mm) | Adjustable Range of Discharge Opening( mm) | Feed Height ( mm) | Capacity(t/h) | Transport Dimension( mm) |
| HKT160 | 185 | 13-38 | 2800 | 66-210 | 13000×2800×3420 |
| HKH300 | 210 | 19-45 | 3200 | 190-440 | 14800×3000×3700 |
Track mobile screening plant
| Model | Max. Feed Size( mm) | Sieve Pore Size( mm) | Feed Height ( mm) | Capacity(t/h) | Transport Dimension( mm) |
| HKS1860 | 400 | 5-80 | 4350 | 600 | 17749×3200×3700 |
| HKS1848 | 400 | 5-80 | 4350 | 500 | 17749×3200×3700 |
| HKS1860 | 400 | 5-80 | 3400 | 600 | 17000×3300×3600 |
| HKS1848 | 400 | 5-80 | 3400 | 500 | 17000×3300×3600 |
